FreeFlow 114mm Square Gutter Union Bracket White (FRS602)

£2.22 Inc VAT

 Nationwide Delivery

Delivery Time: 3 to 5 Working Days

A delivery date will be provided after we have processed your order.
Product Description

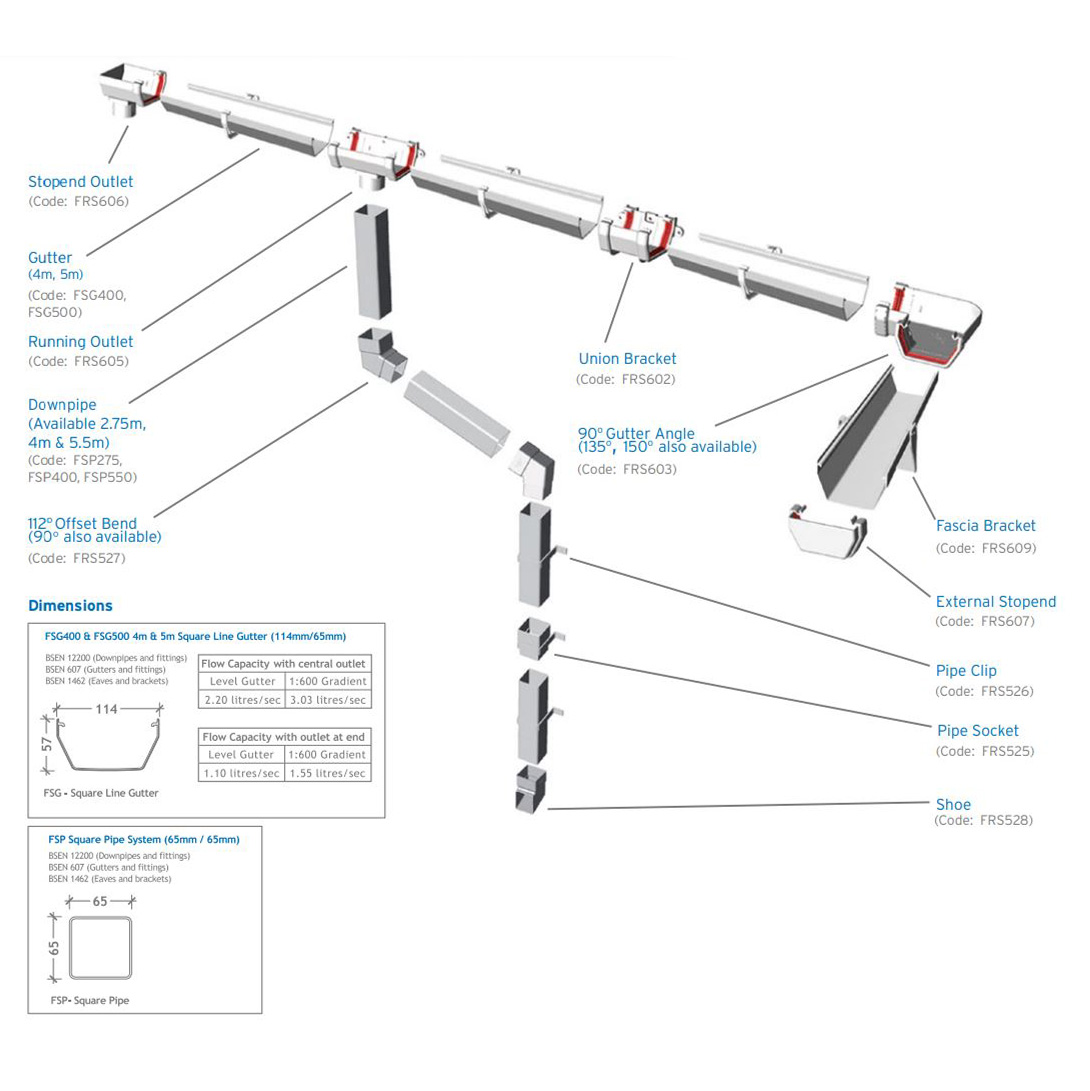

FreeFlow Square Union Bracket White (FRS602)

Freeflow is a line of innovative and top-quality PVC-U rainwater systems created by Freefoam through their dedication to continuous innovation and investment in research and development. The Freeflow range guarantees dependable, leak-proof performance and easy installation. Furthermore, it is compatible with other rainwater systems, and a variety of adaptors are available. Freeflow products are available in standard colors such as white, black, and brown.

Co-extruded to Reduce Leaks

Each gutter system is co-extruded with a white interior and a range of exterior colours. While the interior will be exposed to sunlight as normal, its absorption of heat from the sun and subsequent expansion along its width and length will be significantly reduced. This is Freefoam®s innovative solution to the problems associated with rapid heat absorption and expansion of gutters such as creaks and leaks.

Long-Life Advanced Compressible Seals

All Freeflow® gutter accessories are manufactured with our advanced long-life compressible seals. This results in flexible, watertight joints, when lengths of guttering are connected together. The compressible seals also allow the gutters to move silently and prohibit the creation of gaps which would ultimately cause leaks.

Protective Film on all Gutters and Downpipes

All Freeflow gutters and downpipes are covered with a temporary protective film to help protect against knocks and scratches during transit and installation. This guarantees a professional finish to any project.

Environmentally Sustainable Gutter System

Freeflow® gutter systems are manufactured using a combination of recycled and virgin materials to minimise environmental impact and optimise product performance. Recycled content varies, however it is typically up to 85% of the final product. All recycled material used is 100% lead-free Freefoam material.

Additional information

Weight 1 kg
Gutter Profile

Brand

Colour

System Type

Type of Product

Diameter

Delivery Costs

All delivery costs are given in the basket and during checkout after a delivery postcode is entered, this is because delivery costs are dependent on the products that you’re looking to purchase and where they need to be delivered to. Delivery costs are based on delivery to a single address within the UK Mainland, excluding the Scottish Highlands and Islands where additional costs may apply. Please see examples of our delivery costs below:

Example of delivery cost for products from FreeFlow Rainwater Systems and Soudal:


Small FreeFlow/Soudal Items: from £3.75 + VAT

(sealant, clips, unions and brackets etc)

Long FreeFlow Items: from £20.00 + VAT

(lengths of pipe and guttering etc)
Example of delivery cost for products from FloPlast, Polypipe, Brett Martin, Penosil:

Small Items: from £10.00 + VAT

(plumbing, drainage and rainwater fittings etc)

Long or Large Items: from £20.00 + VAT

(lengths/rolls of pipe, chambers and guttering etc)

We differentiate between small and large/long items, simply because an order containing large items or anything with a length to it, such as, chambers, rolls of pipe, drainage pipe and guttering require a specialist courier, and they charge a premium for this service.

Delivery costs are based on product availability and delivery within the UK Mainland. Delivery to the Scottish Highlands and Islands may incur additional costs, if applicable, these will be given in the checkout after a delivery postcode is entered.

*We don’t currently offer a delivery service to Northern Ireland.
Why does a 300mm Access Chamber not have a lid for driveway use?

Access Chambers are installed close to a house, usually on a path or patio near to the top of the drain so they ONLY have the option of a light-duty lid for pedestrian areas such as patios and paths (A15 Rating).

Only a 450mm Inspection Chamber should be used on a driveway or high foot traffic area, and the appropriately rated lid must be used to comply with The Building Regulations.

When and where should an Inspection Chamber be used?

Inspection Chambers are a very important part of an underground drainage system, they provide access for testing and inspecting, as well as clearing blockages.

There are different types of inspection chambers, each with its own intended use and placement, depending on circumstances such as location, depth and foot or vehicle traffic. We’ve created a quick guide below:

Access Chambers

Access Chambers, often referred to as mini or shallow access are used close to a house, and near to the top of the drain, so they’re not fitted deeper than 600mm (0.6m) and have a diameter of 300mm. They provide easy access for inspection and equipment.

*Access Chambers ONLY have the option of a light-duty lid for pedestrian areas such as patios and paths (A15 Rating).

Inspection Chambers

Inspection Chambers are a larger version of an access chamber, usually with a diameter of 450mm to 600mm, enabling them to be installed further away from a house, and to a maximum depth of 1200mm (1.2m). They tend to also have more branches feeding into them.

Inspection Chambers a more versatile so have a choice of compatible lids rated for different applications, for example, driveways etc.

Manholes

Manholes are larger than access and inspection chambers as they’re designed to be big enough for maintenance staff and equipment to enter the drainage system, they’re usually deeper than 1 metre and wider than 600mm x 900mm and lead to the sewer. They’re kept sealed and not accessible to the public.

How deep can inspection chambers be installed?

Mini Access Chambers (300mm Diameter)

Mini Access Chambers can be used effectively to a maximum depth of 600mm (0.6m), this is simply due to their narrow width. However, as they’re supposed to be installed near the house, they’re close to the top of the drain.

Standard Inspection Chambers (450mm Diameter)

Due to them being wide enough for a child to fall down, Standard Inspection Chambers have a maximum permitted depth of 1200mm (1.2m).

*Using an inspection chamber deeper than 1200mm: In the rare instance that a deeper inspection chamber is required, then a 350mm Chamber Reduction Ring must be used, under these circumstances the maximum depth would be 3000mm (3m).
